2296 kg
0.04 cubic meter
13 kW
32kWh / 40kWh Lithium-ion Battery
Technical details
Product Overview
With minimal tail overhang, the new HX19e offers more digging and lifting power than a zero tailswing machine. And with the biggest and strongest battery pack in its class, it can run for up to 10 hours, easily providing a full day of productive, zero emission working with the flexibility to also work in noise restricted areas. For more choice, the HX19e is available with a cabin or optional canopy version.
Reasons to choose the HX19e Electric Compact Excavator
Breaking standards in comfort & controllability
With low noise due to having no engine and a spacious interior, both our cabin and canopy versions have been designed for maximum operator comfort and convenience.
- A 5-inch LCD display monitor allows the easy control of excavator settings and quick access to all critical functions and operations.
- The LCD monitor is IP68 waterproof, especially important when working in a canopy model.
- Our cab model has a full glass door to provide improved visibility.
- Precise operation of hydraulic attachments is made easy with proportional fingertip control.
- The HX19e is fully electric making it very quiet for greater operator comfort and concentration.
Breaking standards in safety
Hyundai excavators are designed with state-of-the-art features for greater protection and the highest safety standards.
- Auto-Safety Lock feature prevents accidental operation.
- Get peace of mind cabin and canopy protection with ROPS (Roll-Over Protective Structures) and TOPS (Tip-Over Protective Structure).
- FOG (Falling Object Guard) is available as an option for additional safety.
- Lower the boom and arm after work and leave your equipment in a safe place, thanks to the Hydraulic Accumulator.
- A safety valve on the dozer blade cylinder provides reassurance when loading and digging.
Breaking standards in productivity
The new HX19e has the biggest and strongest battery in its class. It can run for up to 10 hours, easily providing a full day of productive working.

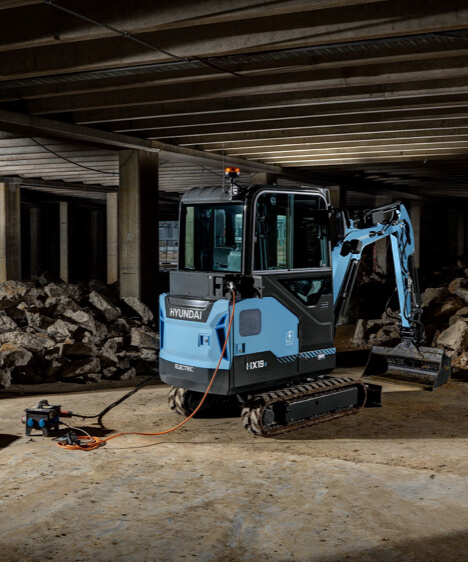

- The battery can be charged using a standard car charger, making it very easy to use.
- Standard 2-way auxiliary hydraulic piping allows the machine to handle hammer or shear attachments.
- Optional factory-fitted hydraulic line can operate any hydraulic coupler for quick attachment changes from inside the cabin.
- Extendable tracks and an adjustable dozer blade provide greater stability and make transporting easier.
- Multiple dipper arm lengths are available as options to adapt your machine for the job in hand.
Breaking standards in serviceability
The new HX19e has been designed to give easy maintenance access with long service intervals. State-of-the-art telematics also provide vital machine information.
- A well-designed boom ensures hydraulic hoses are routed inside, for better protection when working.
- Cylinder guards to the boom, arm, and bucket provide increased protection and reduce the risk of downtime and costly repairs.
- Replacement of hoses is made easy due to a blade cylinder maintenance interface, allowing better access and easier servicing.
- Hyundai’s optional remote management system, Hi-MATE, uses GPS satellite technology to provide the highest level of service and product support.
FAQs about the HX19e Electric compact excavator
What is the run time of the HX19e mini excavator?
The new HX19e has the biggest and strongest battery in its class. It can run for up to 10 hours, easily providing a full day of productive working.
Does the HX19e integrate with Hi Mate?
Yes. Hyundai’s innovative Hi MATE telematics system enables full monitoring of machine activity and performance.
What is the operating weight of the HX19e?
The operating weight is between 2 and 2.3 tonnes.
Can HX19e be charged with a standard car charger?
Yes. The battery can be charged using a standard car charger, without the need for any new set-up, making it very easy to use.
